Abstract

LFP compaction density testing measures how densely lithium iron phosphate (LFP) powder packs under a defined pressure — typically evaluated at 220 MPa using a three-point method — and the result directly affects both battery energy density/cycle life and export control classification, since regulatory guidance has previously restricted export of LFP materials with a compaction density ≥ 2.58 g/cm³ at 220 MPa. IEST Instrument’s PRCD Powder Compaction Density Tester, part of the PRCD series, performs this LFP density test in accordance with China’s national standard GB/T 44330-2024, with 90-day stability data confirming repeatable, control-chart-verified results for R&D, quality control, and export documentation.

1. Preface

Recent adjustments to export control policies concerning lithium iron phosphate (LFP) have brought LFP compaction density testing into sharp focus for the battery industry and international trade. As a critical indicator impacting both export compliance and core battery performance, accurate and professional testing for this parameter has become essential for companies seeking a competitive edge.

IEST Instrument, leveraging its technical expertise and integrated resources, now offers comprehensive LFP compaction density testing capabilities for both LFP and lithium iron manganese phosphate (LMFP) powders, providing the industry with a reliable solution.

2. The Critical Role of Compaction Density Testing

The compaction density of LFP powder directly influences key battery performance metrics such as energy density and cycle life. Furthermore, it is a pivotal parameter in export control regulations.

From a Regulatory Perspective: Previous announcements from regulatory bodies explicitly restricted the export of LFP materials with a powder compaction density ≥ 2.58 g/cm³ at 220 MPa. While specific control measures may be adjusted, maintaining robustLFP compaction density testing capability remains a core competency for companies navigating policy fluctuations.
From a Market Perspective: Whether for R&D, quality control, or export clearance, authoritative LFP compaction density test reports serve as vital documentation for demonstrating product compliance and ensuring smooth international trade.

3. Core Testing Capabilities at IEST Instrument

Building on accumulated technical expertise and strategic partnerships, IEST has established a full-spectrum testing service centered on its PRCD series instruments, with core competencies spanning three key dimensions:

Explicit Standard Adherence: Testing is conducted in strict accordance with the Chinese National Standard for compaction density (GB/T 44330-2024), ensuring data accuracy and regulatory compliance. This aligns directly with the requirements of authoritative certifications like CMA and CNAS.
Technical Resource Integration: We have established collaborative intentions with leading industry testing institutions and metrology bodies. This facilitates alignment on testing standards and technical synergy, creating a seamless “testing-to-certification” pathway.
Equipment and metrological assurance: PRCD series device configurations are optimized for specific testing needs. IEST is progressing with whole-instrument metrological calibration in coordination with metrology systems, guaranteeing the reliability and credibility of test results at the hardware level.

Figure 1. IEST PRCD series powder resistivity and compaction density tester, demonstrating the pressure application and thickness/resistance measurement system used for LFP compaction density testing.

4. Demonstrating Accuracy and Long-Term Stability

The table below presents LFP compaction density data for six different LFP cathode materials, tested using the IEST PRCD Powder Compaction Density Tester. The industry-standard “three-point method” was employed, with density at 220 MPa as the evaluation benchmark.

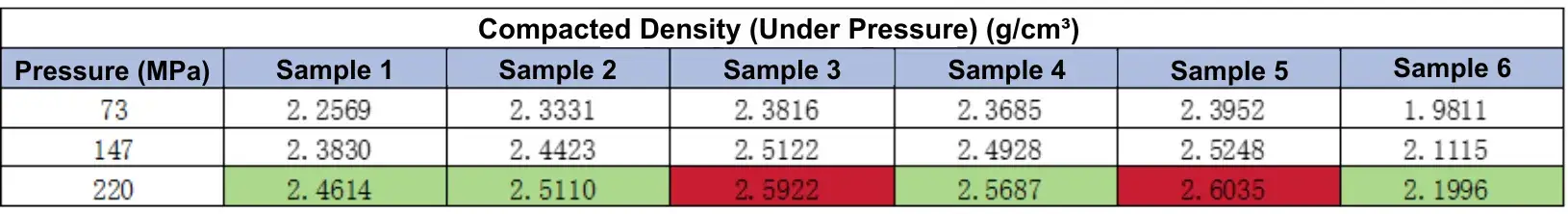

Table 1. Compacted density under pressure across various powder samples.
Compaction Density (Under Pressure) (g/cm³)
Pressure (MPa)	Sample 1	Sample 2	Sample 3	Sample 4	Sample 5	Sample 6
73	2.2569	2.3331	2.3816	2.3685	2.3952	1.9811
147	2.3830	2.4423	2.5122	2.4928	2.5248	2.1115
220	2.4614	2.5110	2.5922	2.5687	2.6035	2.1996

The data clearly differentiates the samples. At 220 MPa, Samples 3 and 5 exhibit compaction densities of 2.5922 g/cm³ and 2.6035 g/cm³, respectively, both exceeding the 2.58 g/cm³ control threshold. From a powder compaction performance standpoint, these would fall under regulatory control. Samples 1, 2, 4, and 6, with densities below the threshold, would not.

Table 2. Six-Sample Compliance Determination Summary (220 MPa, 2.58 g/cm³ Reference Threshold)
Sample	Compaction Density at 220 MPa	Relative to 2.58 g/cm³ Threshold	Regulatory Flag (Illustrative)
Sample 1	Below 2.58 g/cm³	Below threshold	Not flagged
Sample 2	Below 2.58 g/cm³	Below threshold	Not flagged
Sample 3	2.5922 g/cm³	Above threshold	Flagged
Sample 4	Below 2.58 g/cm³	Below threshold	Not flagged
Sample 5	2.6035 g/cm³	Above threshold	Flagged
Sample 6	Below 2.58 g/cm³	Below threshold	Not flagged

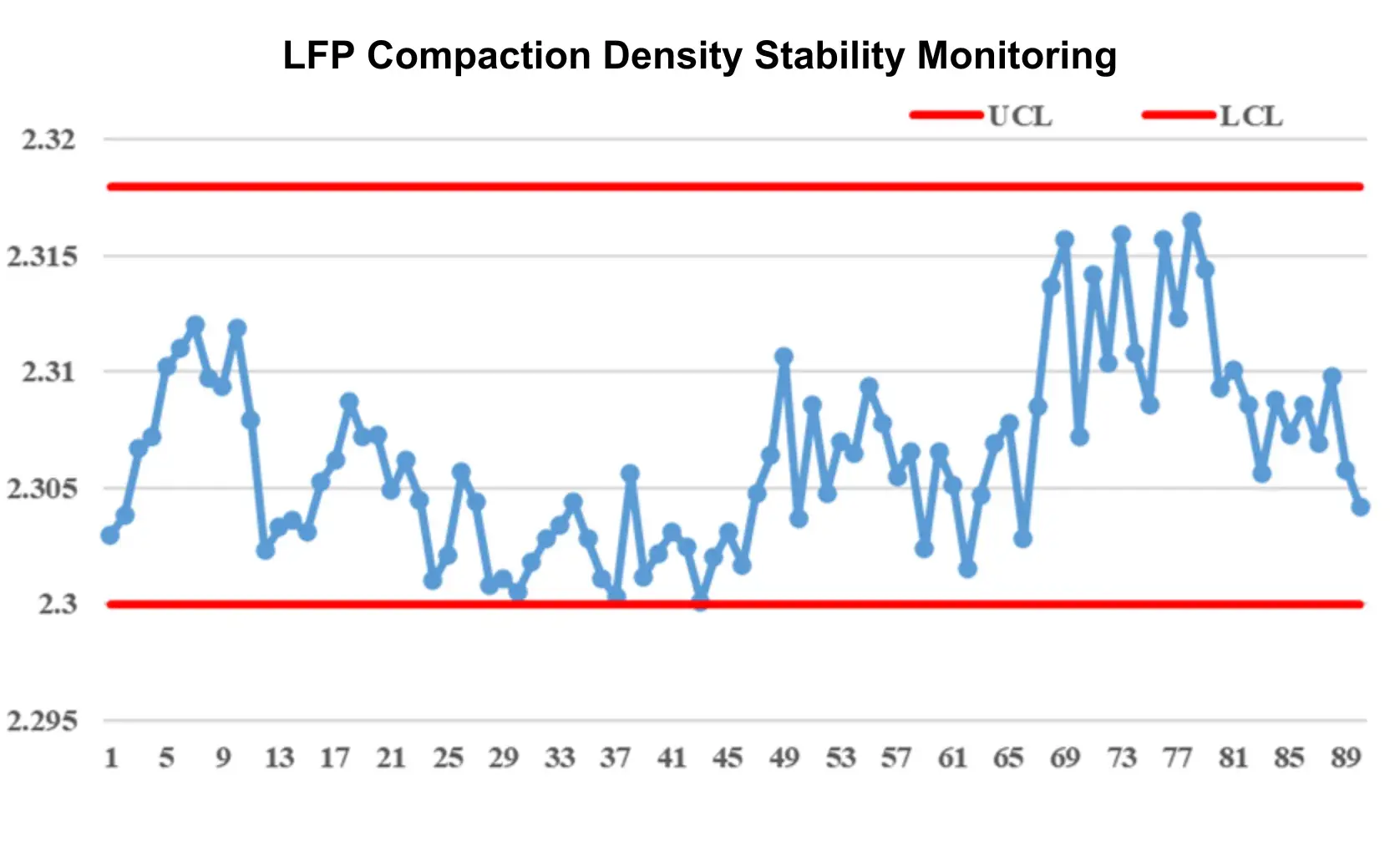

Figure 2. LFP compaction density control chart measured over 90 days of continuous testing on the IEST PRCD, demonstrating results consistently within the Upper and Lower Control Limits.

Long-term testing stability is another critical strength. A control chart monitoring LFP compaction density stability over 90 days of continuous testing demonstrates the reliability of IEST instruments. The data consistently fluctuates within the Upper Control Limit (UCL) and Lower Control Limit (LCL) bands, with no significant shifts or out-of-control points. This confirms that the PCD2000 tester provides not only precise results but also long-term stability and repeatability — essential for material quality control, process consistency evaluation, and batch-to-batch monitoring.

4.1 Compaction Density vs. Theoretical Density: What Is the Difference?

Theoretical density refers to the maximum possible density of a crystalline material calculated from its unit cell structure, assuming zero porosity — a value no real powder compact can reach because particle packing always leaves some pore space between grains. Compaction density is the measured density of an actual powder sample under applied pressure, and is therefore always lower than the material’s theoretical density.

Because LFP powder consists of discrete particles rather than a single continuous crystal, even at high compaction pressures such as 220 MPa, residual porosity between particles keeps the measured compaction density below the LFP crystal’s theoretical density. This distinction matters for interpreting compaction density test reports: a result approaching but not reaching theoretical density indicates a well-packed, low-porosity powder, while a lower result may reflect particle morphology, particle size distribution, or pressing conditions rather than a defect in the material itself.

4.2 Summary of Accuracy and Stability Findings

Six-sample benchmarking at 220 MPa differentiates materials above and below the 2.58 g/cm³ reference threshold with clear separation (Table 1, Table 2).
90-day continuous control-chart monitoring shows no out-of-control points, confirming repeatable measurement performance suitable for batch-to-batch quality control.
The three-point method combined with GB/T 44330-2024 compliance supports both R&D benchmarking and export documentation use cases.

5. Beyond Testing: Enabling Full-Industry-Chain Compliance

IEST‘s LFP compaction density testing service extends beyond single-point measurement, offering comprehensive support tailored to real-world business needs:

For exporters, we provide compliant test data to navigate customs supervision and trade verification.
For R&D and manufacturing teams, we deliver precise feedback to support product optimization and quality management.
By collaborating with third-party certification systems, we enhance industry-wide recognition of test results, helping to reduce redundant testing costs.

While policies may evolve, a company’s foundational capability to test core performance and compliance parameters must remain robust. IEST Instrument is committed to advancing testing technologies for LFP and related materials. By leveraging our standards expertise, resource network, and equipment advantages, we provide efficient and accurate LFP compaction density testing services, empowering the industry’s compliant development and global expansion.

Need a Compliant LFP Compaction Density Test Report?

The IEST PRCD Series measures LFP powder compaction density at 220 MPa using the industry-standard three-point method, in accordance with GB/T 44330-2024, with 90-day control-chart-verified stability for R&D, quality control, and export documentation.

View the IEST PRCD Series →

6. Recommended testing instruments: Powder Resistivity & Compaction Density Measurement System (PRCD Series)

Introduction: The PRCD Series is a premier powder characterization platform engineered for the simultaneous, high-precision evaluation of powder resistivity and compaction density. Unifying advanced electronic thickness-resistance sensing with a highly versatile two-probe and four-probe testing matrix, it maps dynamic multi-layer conductivity changes under tightly regulated compression states. Ideal for advanced battery materials R&D and rigorous batch-to-batch battery powder consistency control.

Features:

Ultra-wide pressurization range (maximum 350MPa) and ultra-wide resistance measurement range (1200MΩ).
Features on-demand, fluid switching between two-probe and four-probe measuring architectures.
Multiple powder test modes: discrete pressurization, single-point pressure relief, steady-state pressure relief;
Fully automatic test software, free parameter setting, one-click start.
Real-time monitoring and output of pressure, pressure, ambient temperature, ambient humidity, thickness, resistance, resistivity, conductivity, compaction density and other parameter curves, and automatic saving of test data.
Furnished with standard reference thickness blocks and precision resistance verification modules certified by third-party metrology institutes.

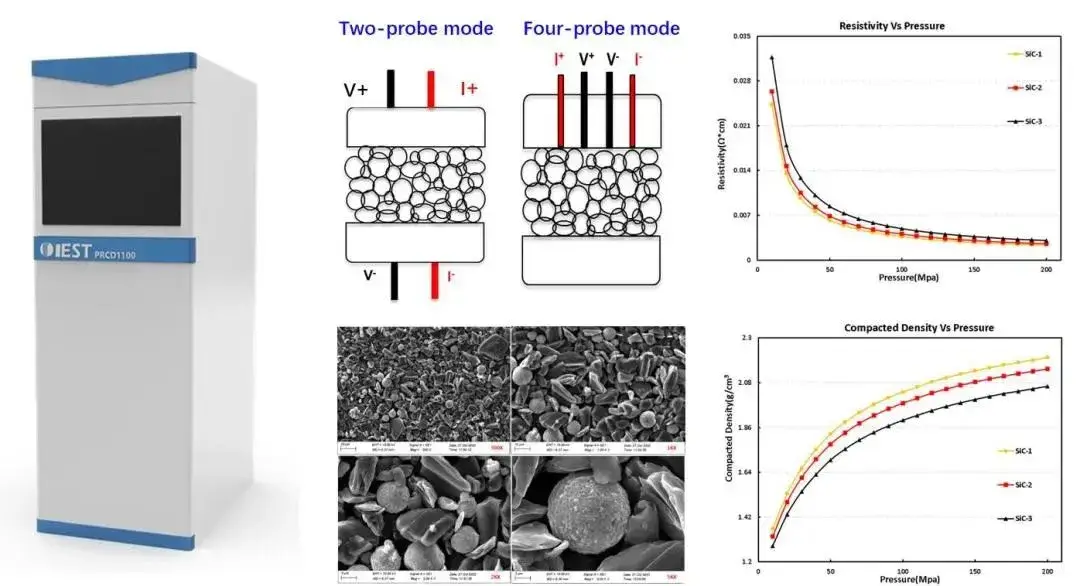

Figure 3. Test principle of the IEST PRCD3100 powder resistance meter, demonstrating comparative electrical conductivity evaluation of different carbon-coated silicon-based anode materials alongside powder compaction density measurement.

7. FAQs

7.1 What is LFP compaction density, and why is it tested?

LFP compaction density is the density lithium iron phosphate powder reaches when compressed under a defined pressure, typically evaluated at 220 MPa. It is tested because it directly affects battery energy density and cycle life, and because compaction density at 220 MPa has been used as an export control classification parameter for LFP materials.

7.2 How is an LFP density test performed?

An LFP density test is performed using the industry-standard three-point method: powder is compressed under stepped pressures up to a benchmark such as 220 MPa, and density is calculated from the compacted sample’s mass, contact area, and thickness. Instruments such as the IEST PRCD automate this process and log the resulting density curve.

7.3 What is the difference between powder compaction density testing and powder resistivity testing?

Powder compaction density testing measures how densely a powder packs under pressure, expressed in g/cm³, while powder resistivity testing measures the electrical resistance of the same compressed powder using two-probe or four-probe methods. Combined instruments such as the IEST PRCD series measure both properties in the same pressing cycle, useful for correlating density with electrical conductivity in battery powder materials.

7.4 What compaction density threshold has been referenced for LFP export control?

Previous regulatory guidance referenced a compaction density of 2.58 g/cm³ at 220 MPa as a classification threshold for LFP export control. Because control measures can be adjusted over time, companies should verify the currently applicable threshold against the latest official policy rather than relying on a fixed historical value.

7.5 What standard governs LFP compaction density testing in China?

LFP compaction density testing in China is conducted in accordance with the national standard GB/T 44330-2024, which specifies the testing method and requirements for powder compaction density measurement, supporting alignment with certifications such as CMA and CNAS.

7.6 Is compaction density the same as the theoretical density of LFP?

No. Theoretical density is the maximum possible density of the LFP crystal structure assuming zero porosity, while compaction density is the measured density of an actual powder sample under pressure, which is always lower due to residual porosity between particles. A compaction density test therefore reflects real powder packing behavior, not the crystal’s absolute density limit.
