The Impact of PAA Binder on the Conductivity and Compression Performance of Silicon-Based Anodes

1. The Silicon Anode Promise and the Binder Challenge

As the new energy industry continues to expand, the specific capacity of graphite anodes can no longer meet future demands for battery energy density. In contrast to graphite, silicon offers an ultra-high theoretical specific capacity of 4,200 mAh/g in its fully lithiated state—meaning a silicon anode can store substantially more capacity than a graphite anode at equivalent mass.

However, during cycling, lithium-ion insertion causes massive volume expansion (~300%) in silicon anodes. As lithium ions repeatedly insert and extract, silicon volume continuously changes. This intense volumetric fluctuation produces surface cracking, and propagating cracks lead to electrode fragmentation and silicon particle pulverization. The end result is detachment of active material from the current collector, disruption of the conductive network, continuous capacity loss, and ultimate battery failure.

Three primary strategies currently address this volume-change challenge:^[1–4]

• Structural design of silicon—nanotubes, nanowires, or nanoshells designed to accommodate volume change through engineered porosity
• Silicon-based composite materials—silicon-carbon (Si/C) and silicon oxide-carbon anodes that buffer volume expansion through synergistic material effects
• High-performance binder systems—polymer binders engineered to suppress and accommodate silicon’s volume expansion mechanically

Silicon structural design typically involves high cost and complex processing, largely remaining at laboratory scale. Silicon-based composite materials combined with high-performance binders are therefore the more widely adopted, commercially practical approach—making binder selection for silicon-based anodes a critical, directly actionable engineering decision.

2. PAA vs CMC/SBR: A Mechanistic Comparison for Binder Selection

For silicon-based anodes, PAA binder has become a subject of intense research.^[5,6] As a water-soluble, linear polymer, PAA offers distinct advantages over conventional carboxymethyl cellulose/styrene-butadiene rubber (CMC/SBR) binder systems. The key difference lies in the bonding mechanism: PAA facilitates “segment-to-surface” bonding, creating a more uniform, cohesive network that anchors particles more effectively and yields greater electrode integrity. CMC/SBR, by contrast, typically provides “point-to-point” bonding.

This structural difference between PAA and CMC/SBR binder translates into minimal swelling in carbonate-based electrolytes and excellent structural stability for PAA during cycling. The abundant carboxyl (–COOH) groups in PAA also form strong hydrogen bonds with functional groups on silicon and carbon particle surfaces, promoting a more uniform coating, enhancing adhesion to the current collector, and contributing to a more stable solid electrolyte interphase (SEI)— collectively improving cycle performance for silicon-carbon anode systems.

3. Experimental Methodology: Precision Measurement of Electrode Properties

3.1 Test Equipment

The core instrument is the BER2500 Electrode Sheet Resistance Tester (Figure 1). It accommodates electrode samples with a 14 mm diameter and applies pressure from 5 to 60 MPa, simultaneously recording sheet resistance, resistivity, electrical conductivity, and compaction density in real time.

Figure 1. (a) BER2500 appearance; (b) BER2500 structural diagram — used to compare PAA and CMC/SBR binder performance in Si/C anode electrodes

3.2 Experimental Procedure

Two sets of Si/C anode sheets were prepared with identical formulations and active materials, differing only in the binder system: one with CMC/SBR (labeled SC-CMC) and one with PAA (labeled SC-PAA).

• Electrode Resistance Test: Single-point test mode at a constant pressure of 5 MPa with a 15-second hold. Eight data points were sampled per sheet to obtain average values for thickness, resistance, resistivity, and conductivity.

• Compression Performance Test: Steady-state test mode, ramping pressure from 5 MPa to 60 MPa in 5 MPa steps with a 15-second hold at each step, measuring electrode thickness change and compression behavior across the full pressure range.

4. Results: Electrical Conductivity Advantage of PAA Binder Over CMC/SBR

Comparative data for sheet resistance, resistivity, and thickness are presented in Figure 2. The results clearly show that the Si/C anode sheet prepared with CMC/SBR binder exhibits slightly higher resistance and resistivity than its PAA-bound counterpart.

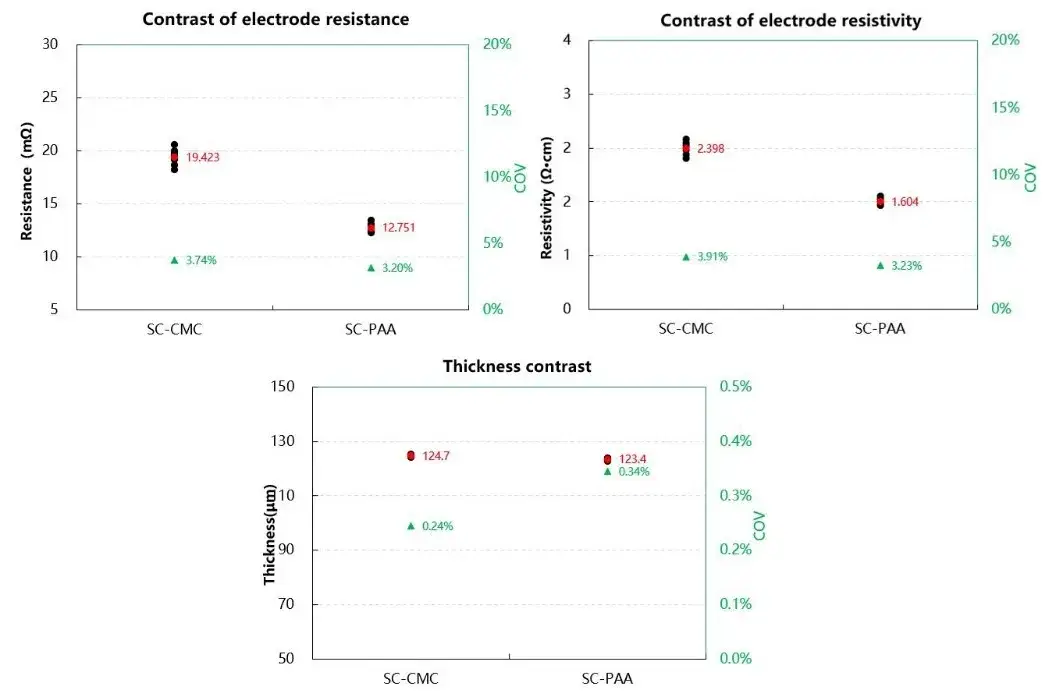

Figure 2. Comparative resistance, resistivity, and thickness results for SC-PAA vs SC-CMC Si/C anode electrode sheets — PAA binder shows lower resistance and resistivity than CMC/SBR binder

This conductivity advantage in PAA binder is attributable to its bonding mechanism. As illustrated in Figure 3, PAA’s linear structure enables more extensive “segment-to-surface” contact with active material particles compared to the “point-to-surface” contact of SBR latex. This superior adhesion—driven by strong hydrogen bonding with surface hydrated layers—produces a more uniform coating over silicon particles. The high concentration of polar groups (e.g., sodium carboxylate) in PAA also improves bonding to the current collector. This dual effect strengthens the electrical contact network both between active material/conductive agent particles and between the composite coating and the current collector, reducing overall electronic resistance. Research also suggests PAA may participate in SEI formation: its –COOH groups can interact with solvated Li⁺ ions, potentially facilitating desolvation and lithium-ion insertion kinetics at the silicon surface.

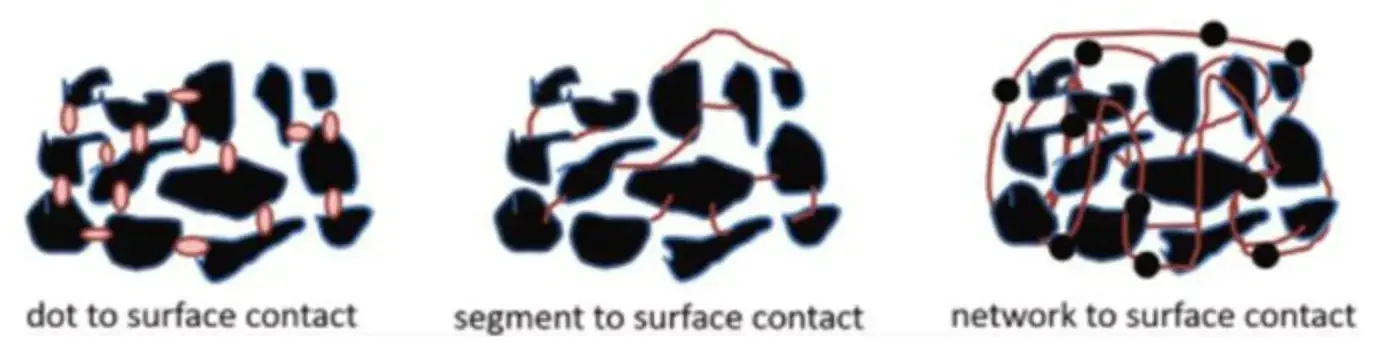

Figure 3. Schematic of binder-active particle contact mechanisms — point-to-surface (CMC/SBR), segment-to-surface (PAA), and network-to-surface contact — PAA’s extended contact area explains its conductivity advantage in Si/C anodes

5. Results & Discussion: Superior Compression Performance of PAA Binder

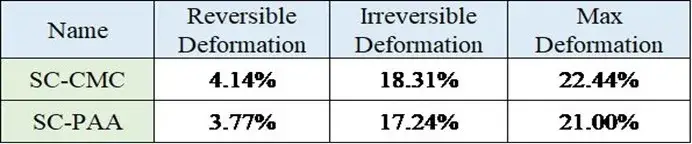

Compression performance test results are shown in Figure 4 and summarized in Table 1. Key metrics—maximum deformation, reversible deformation, and irreversible deformation—were all greater for the SC-CMC electrode than for the SC-PAA electrode.

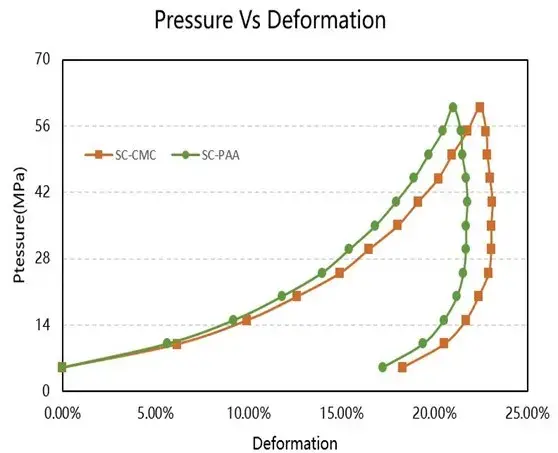

Figure 4. Compression performance test results for SC-PAA vs SC-CMC Si/C anode electrode sheets, 5–60 MPa — CMC/SBR binder shows consistently greater deformation at every pressure step

This indicates that the CMC/SBR-based electrode is more compressible. A significant downside of this higher compressibility is greater elastic rebound (spring-back) after calendering, which poses challenges for cell assembly and precise control of electrode porosity in silicon anode manufacturing. The difference stems from the inherent mechanical properties of each binder: CMC has a rigid cellulose backbone, imparting stiffness and brittleness. SBR is added as an elastomeric modifier to reduce brittleness and increase maximum strain, but the composite CMC/SBR system still shows different viscoelastic behavior than PAA. The flexible, polyethylene-like backbone of PAA contributes to its lower permanent (irreversible) deformation and reduced rebound under compression.

6. Conclusion: PAA Binder as a Key Enabler for Robust Silicon Anodes

This case study demonstrates the value of precise, electrode-level testing in binder selection for silicon-based anodes. Using the BER2500 system, we quantitatively compared CMC/SBR and PAA binder. The results confirm that PAA binder not only improves electrical conductivity—by enhancing inter-particle and electrode-current collector contact—but also delivers superior compression performance, characterized by reduced elastic rebound after calendering.

These benefits trace directly to PAA’s chemical structure. Its higher carboxyl group content facilitates stronger hydrogen bonding with active materials, promoting a more homogeneous coating. This produces a more stable electrode architecture that better accommodates volume changes during cycling, fosters a more robust and thin SEI layer, reduces interfacial impedance (particularly charge-transfer resistance), and improves lithium-ion diffusion rates. Selecting an advanced binder system like PAA is therefore a critical step in developing high-performance, durable silicon-based lithium-ion battery anodes.

7. References

[1] Kang K, Song K, Heo H, et al. Kinetics-driven high power Li-ion  battery with a-Si/NiSix core-shell nanowire anodes[J]. Chemical  Science, 2011, 2(6): 1090-1093.

[2] FU Yan-peng,CHEN Hui-xin,YANG Yong . Silicon Nanowires as Anode Materials for Lithium Ion Batteries[J]. Journal of Electrochemistry，2009，15(1): 54-61.

[3] Zhang X, Wang D, Qiu X, et al. Stable high-capacity and high-rate  silicon-based lithium battery anodes upon two-dimensional covalent  encapsulation[J]. Nature Communications, 2020, 11(1): 3826.

[4] Gendensuren B, He C, Oh E-S. Preparation of pectin-based  dual-crosslinked network as a binder for high performance Si/C anode  for LIBs[J]. Korean Journal of Chemical Engineering, 2020, 37(2): 366-373.

[5] Magasinski A., Zdyrko B., Kovalenko I., et al. Toward efficient binders for Li-ion battery  Si-based anodes: polyacrylic acid[J]. Acs Applied Materials & Interfaces, 2010, 2(11): 3004-3010.

[6] Komaba S., Shimomura K., Yabuuchi N., et al. Study on Polymer Binders for  High-Capacity SiO Negative Electrode of Li-Ion Batteries[J]. Journal of Physical  Chemistry C, 2011, 115(27): 13487-13495.

[7] Ma Y , Ma J , Cui G . Small things make big deal: Powerful binders of lithium batteries and post-lithium batteries[J].Energy Storage Materials, 2019, 20: 146-175
