IEST Battery Cell In-Situ Thickness Gauge Tester(PPG2000)

Introduction: The battery cell in-Situ thickness gauge tester is a simple device that can test the real-time expansion thickness of the electric core under constant pressure during the long cycle of high and low temperature.

Features:

Servo motor controls pressure;
The pressure can be freely selected within the measuring range;
Rated voltage 200~240v/50~60Hz;
Can communicate with MES;
Has the function of testing the thickness of the battery cell;

Subscribe us

Description

The battery cell in-situ thickness gauge tester is a simple device that can test the real-time expansion thick-ness ofthe electric core under constant pressure during the long cycle of high and low temperature.

(1) Pressurization: motor control, the pressure can be freely selected within the range of mea-surement range;

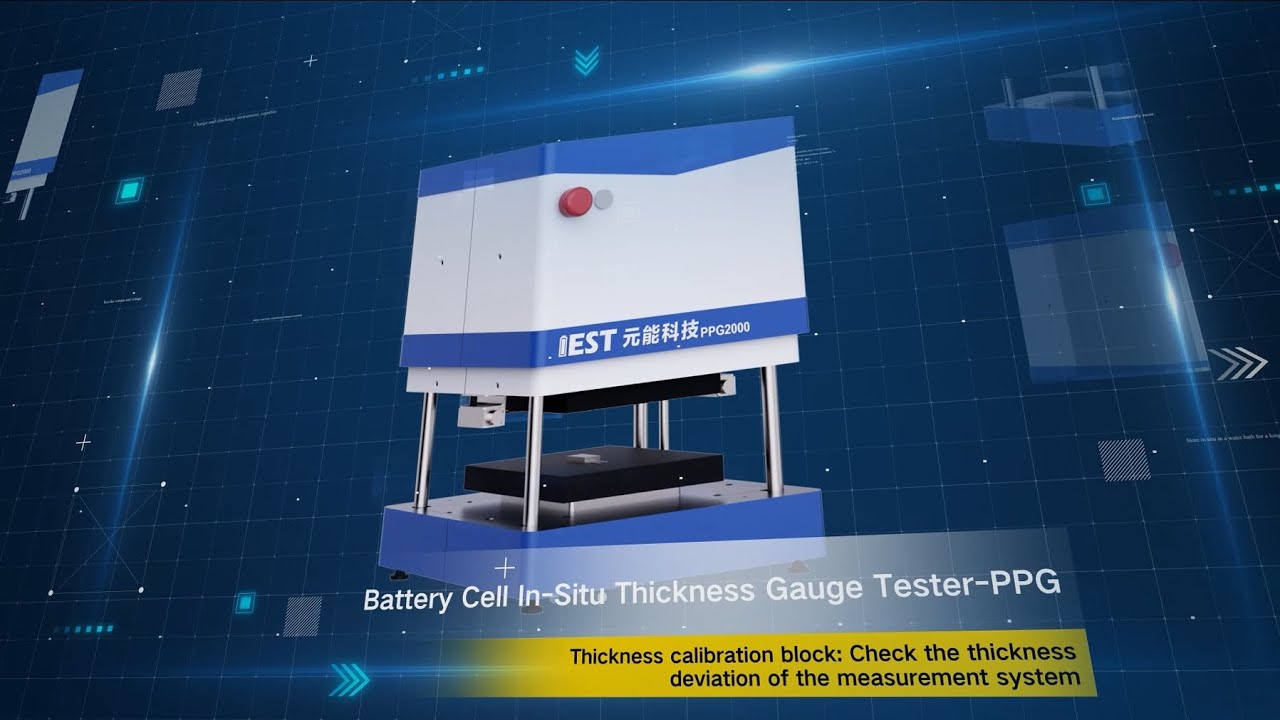

(2) Thickness calibration block: to check the thickness deviation of the measuring system;

(3) Real-time testing, software control, and communication with MES.

(4) Rated voltage 200~240v/50~60Hz;

Updated on Jan. 8, 2025

Applications

Battery Cell In-Situ Thickness Gauge Tester

1. Constant Pressure Cycle Test

PPG2000 and Constant Pressure Cycle Test

Battery Cell Ex-Situ Thickness Gauge Tester

1.GRR Test Data

PPG GRR Test Data

Updated on Jan. 8, 2025

Video

IEST Battery Cell In-Situ Thickness Gauge Tester(PPG2000)

Updated on Jan. 8, 2025

Specifications

Battery Cell In-Situ Thickness Gauge Tester

In-situ PPG Equipment Parameters

Battery Cell Ex-Situ Thickness Gauge Tester

Ex-situ PPG Equipment Parameters

Updated on Jan. 8, 2025
