Why Is Coin Cell Specific Capacity Inconsistent? 7 Key Factors Affecting Specific Capacity Accuracy
Updated on 2026/07/16
Table of Contents
Abstract
Specific capacity in coin cell testing is the electrical charge released by an electrode material per gram of active material, calculated as Specific Capacity (mAh/g) = Capacity (mAh) ÷ Active Material Mass (g) — for example, 1,000 mAh from a 10 g electrode yields 100 mAh/g. Coin cell testing consistency for specific capacity depends on rigorous control across seven process stages: slurry mixing uniformity, electrode coating and drying, calendering, moisture contamination, electrode punching and weighing, glovebox coin cell assembly parameters, and charge/discharge equipment stability. Testing a full batch of cells for consistency requires controlling all seven stages simultaneously, since variability in any single step can introduce specific capacity errors exceeding 1.5 mAh/g for cathode materials and up to 20 mAh/g for silicon-based anodes. The IEST CAAS1200M Automatic Coin-Cell Assembly System addresses the assembly-related sources of this variance directly, achieving batch-level coefficient of variation (COV) below 0.4% across NCM, LFP, graphite, and silicon-based anode materials in a 7-group × 20-electrode evaluation described in Section 4 below.
1. Preface
Specific capacity refers to the ratio of electrical charge released by an electrode material to its active material mass, expressed in milliampere-hours per gram (mAh/g). It is the primary metric for evaluating lithium-ion battery material performance at the laboratory scale, and is calculated from data acquired during coin cell testing.
Specific capacity refers to the ratio of electrical charge released by an electrode material to its active material mass, expressed in milliampere-hours per gram (mAh/g). It is the primary metric for evaluating lithium-ion battery material performance at the laboratory scale, and is calculated from data acquired during coin cell testing.
Coin cell testing consistency for specific capacity depends on rigorous control across seven process stages: slurry mixing uniformity, electrode coating and drying, calendering, moisture contamination, electrode punching and weighing, glovebox coin cell assembly parameters such as stacking concentricity and crimp pressure, and charge/discharge equipment stability. Variability in any single step can introduce errors exceeding 1.5 mAh/g for cathode materials and up to 20 mAh/g for silicon-based anodes. Automated coin cell assembly systems from IEST Instrument reduce these deviations by enforcing standardized protocols, cutting material retesting rates significantly.
2. Why Specific Capacity Consistency in Coin Cell Testing Matters
In lithium-ion battery development, new electrode materials progress through five stages before commercialization: laboratory R&D, bench-scale trials, pilot production, scale-up, and commercial deployment. The laboratory stage is where electrochemical performance is first measured and material value is established — making data quality at this stage foundational to everything downstream.
Specific capacity is defined as the electrical charge a battery material can deliver per unit mass of active material, expressed in mAh/g. For a lithium-ion electrode, the active material stores and releases electrical energy through electrochemical reactions with lithium ions; specific capacity quantifies how efficiently it does so. As the primary indicator of energy density, specific capacity data must be both accurate and reproducible — a requirement that becomes especially demanding when a laboratory needs to test a full batch of cells for consistency rather than a single representative sample.
The standard specific capacity formula is:
| Specific Capacity Formula |
|---|
| Specific Capacity (mAh/g) = Capacity (mAh) ÷ Active Material Mass (g) |
| Example: 1,000 mAh ÷ 10 g = 100 mAh/g |
However, obtaining repeatable specific capacity data from coin cells is notoriously difficult, particularly when the objective is to test a full batch of cells — not a single cell — for consistency. A 1% drift in electrode coating thickness or a 10 µm misalignment during assembly can shift capacity readings enough to mask a material’s true potential, and these small deviations compound across a multi-cell batch rather than canceling out. This article dissects each processing step and demonstrates how automation, applied through IEST Instrument’s Automatic coin cell assembly system, locks in the batch-level consistency that manual methods struggle to achieve.
Figure 1. Coin cell assembly diagram — six process stages controlling specific capacity consistency
3. Coin Cell Assembly: 7 Factors and Sources of Inconsistency Affecting Specific Capacity Results
Specific capacity measurement errors in coin cell testing are rarely caused by the electrochemical testing instrument alone. The following seven process variables are the primary sources of inconsistency behind inter-cell variation and batch-to-batch drift.
3.1 Slurry Mixing Uniformity
Slurry mixing refers to the process of dispersing active material, conductive agent, and binder into a homogeneous high-viscosity suspension. Non-uniform dispersion creates local composition gradients in the dried electrode, resulting in variations in active material loading across punched electrode discs. Mixing equipment selection, rotational speed, mixing time, and temperature must all be controlled to produce a consistently dispersed slurry and, in turn, a uniform electrode coating.
Figure 2. Slurry batching and mixing — dispersion uniformity controls active material loading in coin cell testing
3.2 Electrode Coating Uniformity
Laboratory-scale electrode coating typically uses a doctor-blade coater on a flat-bed platform. Blade gap setting controls the wet film thickness and therefore the active material loading per unit area. Before coating, the current collector foil surface and platform must be cleaned thoroughly with ethanol and a lint-free cloth; the foil must lie flat with minimal wrinkling to ensure uniform transfer.
After coating, the electrode must be dried to remove the NMP solvent and residual moisture. Drying temperature directly affects electrode integrity:
Figure 3. Electrode coating
Figure 4. Electrode coating
3.3 Electrode Calendering Uniformity
Electrode calendering is the controlled compression of the dried electrode using a roll press, with the roll gap adjusted to achieve the target electrode density and thickness. Compaction density governs both electron and ion transport within the electrode: excessively high compaction density blocks lithium-ion diffusion pathways, while insufficient compaction increases ohmic resistance. Both conditions suppress material capacity utilization. Consistent control of calendering pressure and compression ratio is therefore essential for producing electrodes with reproducible compaction density· across batches.
Figure 5. Electrode calendering — roll gap and compaction density directly affect specific capacity utilization
3.4 Moisture Content of Components
Residual moisture in electrode materials, separators, and cell hardware accelerates active material structural degradation, triggers electrolyte decomposition, and generates gas — all of which introduce electrochemical anomalies that can be mistakenly attributed to the material under evaluation. All components must be dried before transfer into the glovebox environment.
3.5 Electrode Punching and Weighing Accuracy
Two precision requirements govern this stage. First, electrode discs must be free of edge burrs after punching; burrs can penetrate the separator and cause internal short circuits. Second, electrode mass must be recorded on a balance with a resolution of 0.01 mg (0.00001 g, i.e., 100,000th-gram precision) or better — coarser balances introduce weighing errors that propagate directly into specific capacity calculations. Before weighing, each disc should be visually inspected to reject electrodes showing coating cracks, material loss, or visible agglomerates.
Figure 6. Electrode punching and weighing — 0.01 mg balance precision required for accurate specific capacity data
3.6 Coin Cell Assembly Consistency
Coin cell assembly in a glovebox introduces several simultaneous variables, each capable of producing anomalous test results:
Figure 7. Material cross-contamination — a hidden source of inconsistency in glovebox coin cell assembly
How Automated Coin Cell Assembly Addresses These Variables
Manual glovebox assembly relies on an operator’s hand-eye coordination to center the electrode, separator, and lithium foil within a coin cell casing, to dispense a consistent electrolyte volume drop by drop, and to apply crimping force through a manually operated or semi-automatic crimper. Each of these actions introduces operator-dependent variance, and that variance is difficult to detect until the specific capacity data for a batch shows an unexplained wide spread. The IEST CAAS1200M Automatic Coin-Cell Assembly System is engineered to remove operator dependency from precisely the assembly variables listed in Section 3.6:
- Component concentricity: a programmed pick-and-place mechanism positions the electrode, separator, and lithium counter electrode along a fixed coaxial reference for every cell, eliminating the manual alignment drift that causes short circuits or incomplete capacity utilization.
- Electrolyte dispensing volume: a metering pump injects a standardized electrolyte volume (70 µL in two portions in the multi-material evaluation described in Section 4) for every cell in the batch, removing the drop-to-drop variability inherent in manual pipetting.
- Crimping pressure: a servo-driven crimping head applies a pre-programmed, cell-type-specific sealing force to every unit, replacing the inconsistent hand pressure of manual or semi-automatic crimpers and reducing the incidence of internal short circuits or poor sealing.
- Glovebox atmosphere and cross-contamination control: fully enclosed, glovebox-integrated operation keeps H₂O and O₂ exposure and cross-material contact consistent across the entire assembly run, rather than varying with individual operator technique and session length.
- Parameter logging: each assembled cell’s electrolyte volume, crimping force, and process timestamp are logged automatically, allowing an out-of-spec specific capacity result to be traced back to a specific process parameter rather than treated as unexplained material variability.
Because these five variables are addressed simultaneously and identically for every cell, an engineer can test a full batch of cells for consistency with confidence that any remaining spread in specific capacity reflects the material itself rather than the assembly process. This is the practical effect that the multi-material evaluation in Section 4 quantifies.
3.7 Charge/Discharge Equipment Stability
Coin cell electrochemical performance data are acquired through battery charge-discharge testers. To ensure data reliability and stability, the test equipment must provide a constant temperature and humidity environment, thereby minimizing the influence of environmental factors on the test results. The charge-discharge equipment should also offer high measurement precision and undergo regular calibration and verification to guarantee accuracy and repeatability. Finally, the entire testing process should follow relevant standards and specifications to ensure the correctness and consistency of test operations.

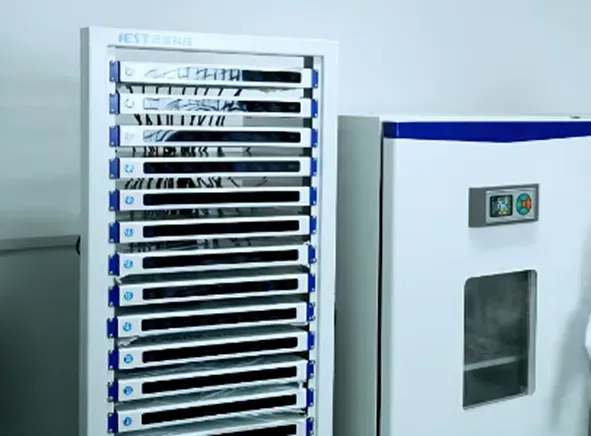

Figure 8. IEST Battery Cycler Electrochemical Analyzer
4. Automated Coin Cell Assembly: Specific Capacity Test Results Across Four Material Systems
Achieving the repeatable, operator-independent placement, dispensing, and crimping sequences required to test a full batch of cells for consistency is difficult with manual glovebox tools — this is precisely why a dedicated assembly platform is needed to generate specific capacity data that can be trusted for material qualification decisions. To quantify the consistency achievable through automated coin cell assembly, IEST Instrument conducted a multi-material evaluation using the CAAS1200M Automatic Coin-cell Assembly System — a platform designed to eliminate the operator-dependent variability inherent in manual assembly. Electrochemical performance testing was carried out on the ERT5008 (5V / 100 mA) battery cycler.
4.1 Experimental Protocol for Batch Consistency Testing
The protocol below was designed specifically to test a full batch of cells for consistency across four representative material systems, rather than to characterize a single cell:
4.2 Specific Capacity Test Results
4.2.1 LFP (Lithium Iron Phosphate) Cathode
LFP coin cell results demonstrated comparable consistency. Per-group sigma remained below 0.4 mAh/g for both charge and discharge, range below 1.5 mAh/g, and COV below 0.3% — meeting standard material qualification requirements for commercial LFP evaluation.

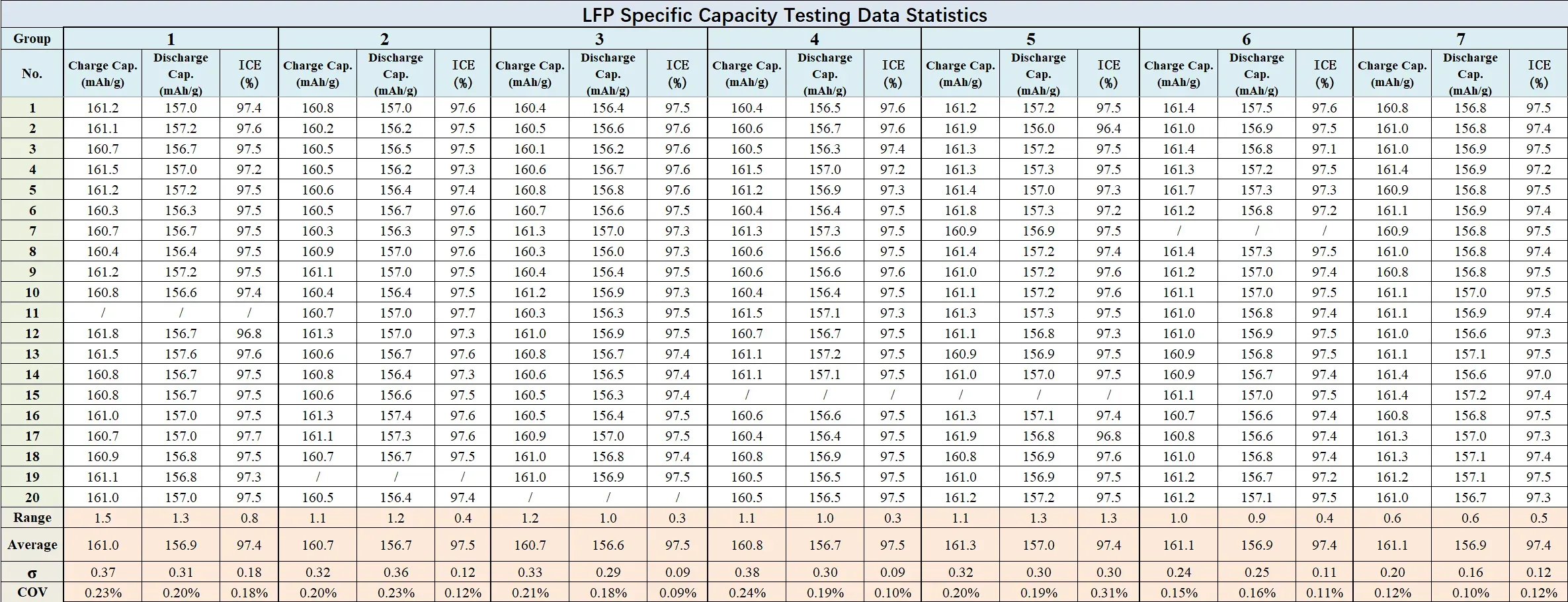

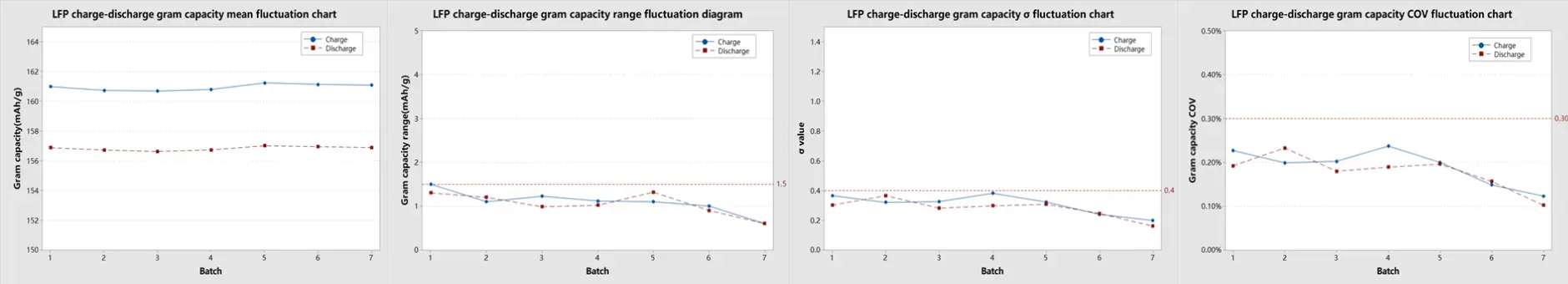

Figure 9. LFP specific capacity testing data statistics
4.2.2 NCM Ternary Cathode
Across 7 parallel groups, NCM coin cells assembled by the CAAS1200M system demonstrated tightly controlled specific capacity distribution. The batch-to-batch mean specific capacity showed minimal drift, with per-group charge/discharge capacity standard deviation (sigma) below 0.4 mAh/g, range (max–min) below 1.5 mAh/g, and coefficient of variation (COV) below 0.2%.

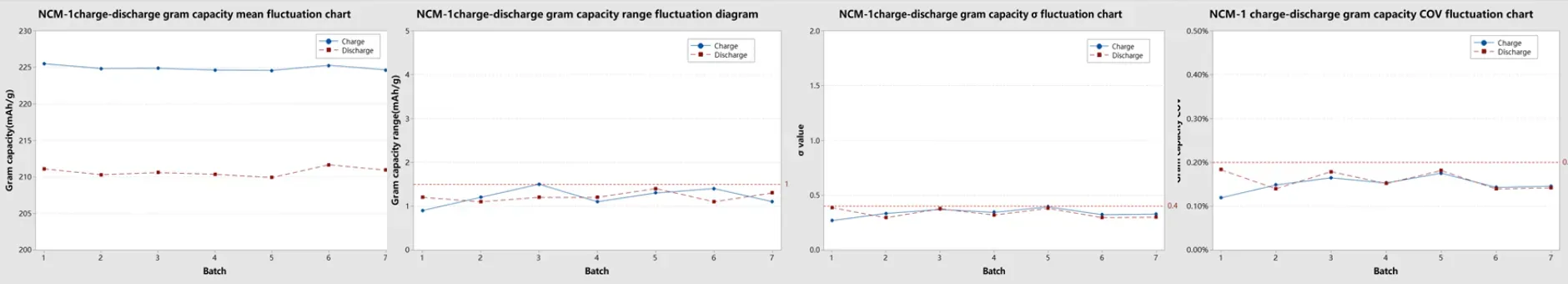

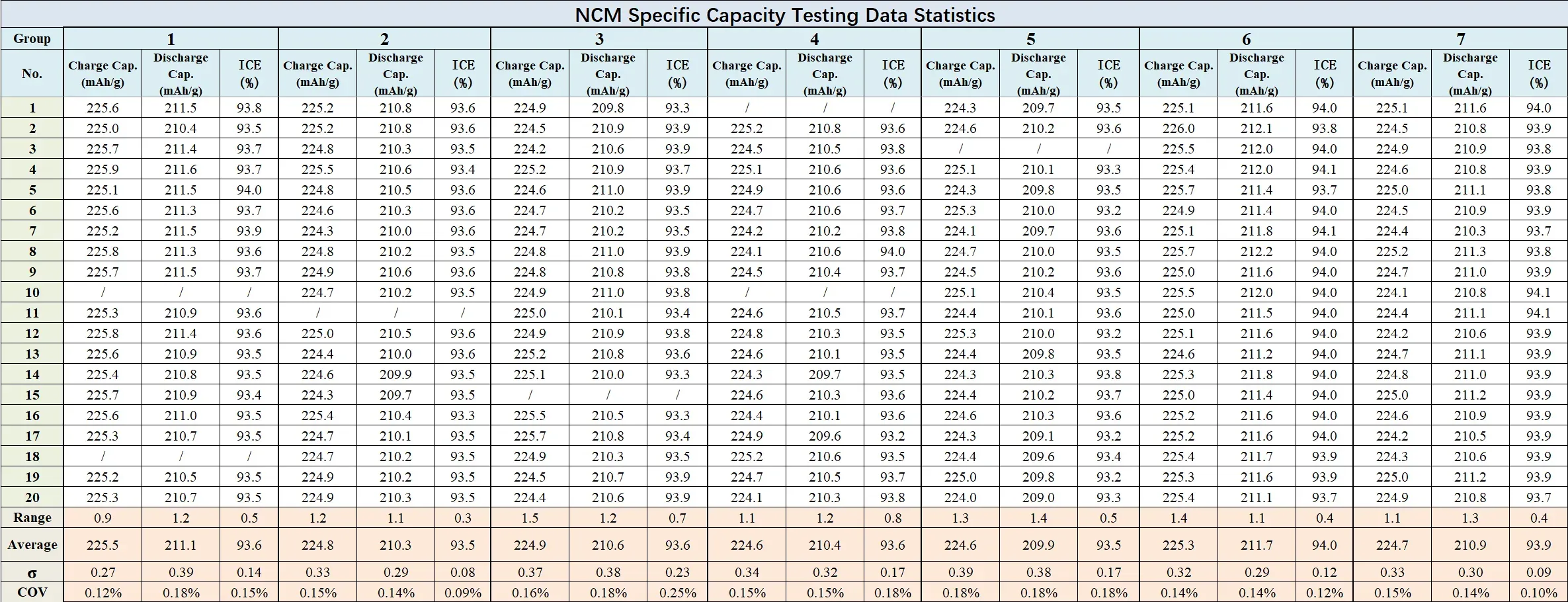

Figure 10. NCM specific capacity testing data statistics
4.2.3 Graphite Anode

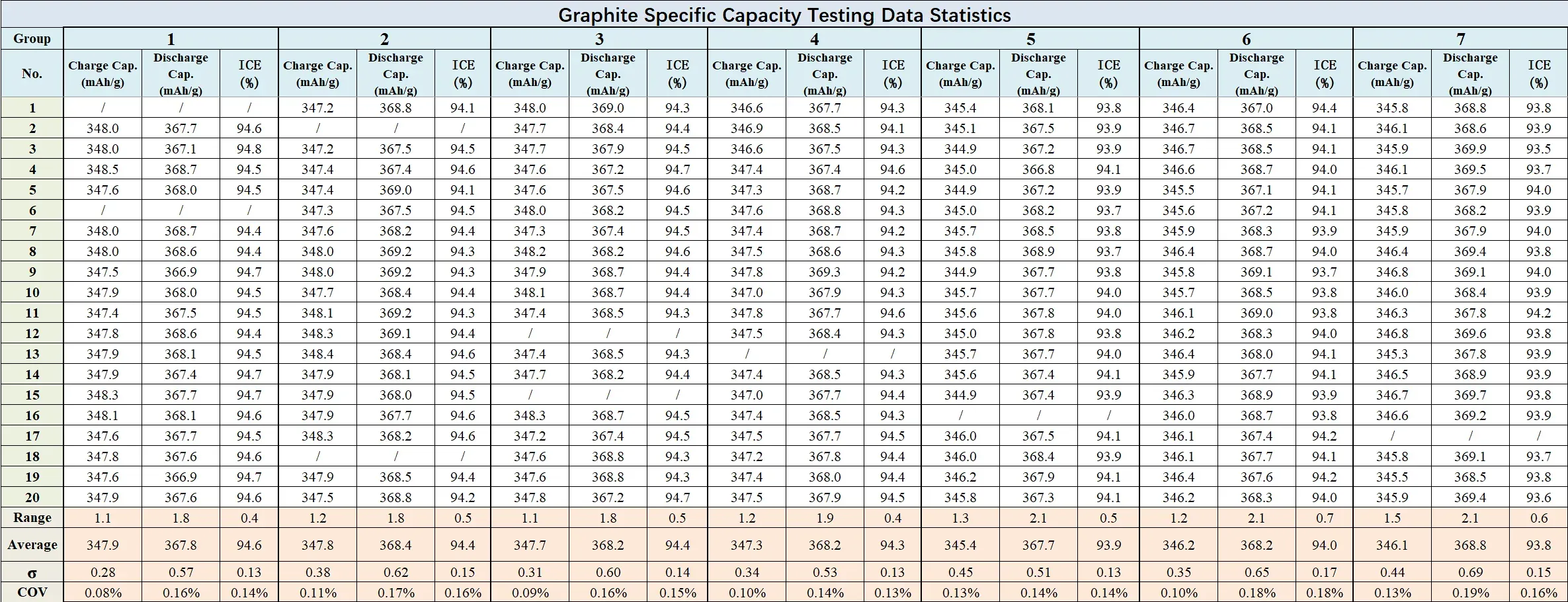

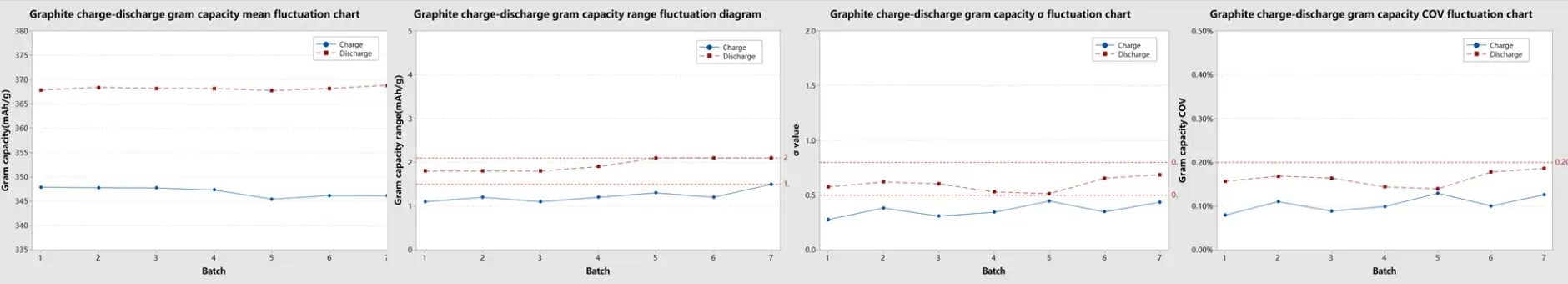

Graphite anode cells exhibited slightly wider discharge variation relative to charge, which is characteristic of the material’s staging behavior. Charge capacity sigma remained below 0.5 mAh/g with a range below 1.5 mAh/g; discharge capacity sigma stayed below 0.8 mAh/g with a range below 2.1 mAh/g. COV for both charge and discharge specific capacity remained below 0.2%.
4.2.4 Silicon-Based Anode
Silicon-based anodes exhibit larger absolute capacity values and inherently higher volume expansion during cycling, making consistency control more challenging. Nevertheless, the automated assembly system maintained sigma below 6 mAh/g, range below 20 mAh/g, and COV below 0.4% — performance that satisfies typical silicon anode R&D qualification criteria.
Figure 12. Silicon-based Anode Testing Data Statistics
4.2.5 Coin cell specific capacity consistency summary
| Material | Sigma (mAh/g) | Range (mAh/g) | COV |
|---|---|---|---|
| NCM (ternary cathode) | < 0.4 | < 1.5 | < 0.2% |
| LFP cathode | < 0.4 | < 1.5 | < 0.3% |
| Graphite anode (charge) | < 0.5 | < 1.5 | < 0.2% |
| Graphite anode (discharge) | < 0.8 | < 2.1 | < 0.2% |
| Silicon-based anode | < 6 | < 20 | < 0.4% |
Need to Test a Full Batch of Coin Cells for Consistency?
IEST CAAS1200M: automated electrode loading, coaxial alignment, 70 µL metered electrolyte dispensing, and servo-controlled crimping — batch COV below 0.4% across NCM, LFP, graphite, and silicon-based anode materials.
5. Summary: Automated Coin Cell Assembly as a Solution to Specific Capacity Inconsistency
Specific capacity inconsistency in coin cell testing originates across multiple workflow stages — not from any single source. Slurry preparation, electrode coating and calendering, punching geometry, weighing precision, pre-assembly drying, glovebox environment control, component alignment, crimping pressure, and instrument calibration each contribute independently to inter-cell variance. Addressing only one stage while neglecting the others yields limited improvement, which is why testing a full batch of cells for consistency requires a systematic approach across all seven factors described in Section 3, not a single corrective fix.
The multi-material evaluation using the IEST CAAS1200M Automated coin cell assembly system demonstrates that automated assembly can consistently achieve COV values below 0.4% across cathode and anode materials — including silicon-based anodes, which are among the most challenging systems to assemble reproducibly by hand. These results confirm that automated coin cell assembly is a viable replacement for manual assembly in material R&D workflows, enabling higher throughput, reduced retest rates, and faster material qualification cycles.
For teams experiencing persistent specific capacity variance or looking to standardize coin cell testing protocols across multiple operators or laboratories, systematic process control combined with automated assembly is the most direct path to reproducible data.
6. About IEST Instrument — Coin Cell Testing and Electrode Characterization Systems
IEST Instrument develops precision testing systems for lithium-ion and next-generation battery materials, with a portfolio spanning coin cell assembly automation, electrode characterization, and electrochemical performance testing. Key systems relevant to coin cell specific capacity workflows include:
- CAAS1200M Automatic Coin-cell Assembly System — fully automated assembly covering electrode loading, electrolyte dispensing, separator placement, and crimping, with glovebox integration and parameter logging for each assembled cell.
- PRCD3100 Powder Resistivity & Compaction Density Measurement System — measures electrode powder resistivity (up to 200 MΩ) and compaction density under pressures up to 350 MPa, supporting upstream material screening before electrode fabrication.
- BER2500 Electrode Sheet Resistance Tester — directly measures through-thickness electrode resistance including coating resistance and coating–current collector contact resistance, for formulation development and process control.
Together, these three systems span the coin cell testing workflow from powder-level characterization (PRCD3100) through electrode-level resistance verification (BER2500) to fully automated, batch-consistent cell assembly (CAAS1200M) — giving a laboratory a single, traceable data chain from raw material to specific capacity result.
To discuss automated coin cell assembly requirements or specific capacity testing protocols for your material system, contact IEST Instrument for a technical consultation.
7. FAQs
7.1 What is specific capacity in coin cell testing, and how is it calculated?
Specific capacity is the electrical charge delivered by an electrode material per gram of active material, expressed in mAh/g. It is calculated by dividing the measured cell capacity (in mAh) by the mass of active material on the electrode disc (in grams). For example, a cell delivering 1,000 mAh from a 10 g electrode has a specific capacity of 100 mAh/g. Accurate weighing of the electrode disc — using a balance with at least 0.01 mg resolution — is critical to obtaining reliable specific capacity values.
7.2 What are the most common causes of specific capacity inconsistency in coin cell testing?
The most common sources of specific capacity inconsistency in coin cell testing are non-uniform electrode coating, insufficient or inconsistent drying of electrode materials and cell components, misalignment of electrode, separator, and lithium foil during assembly, and inconsistent crimping pressure during cell sealing. Elevated H₂O or O₂ levels in the glovebox environment also introduce systematic errors by degrading the electrolyte or oxidizing the lithium counter electrode. The IEST CAAS1200M addresses the assembly-related causes directly through coaxial alignment, metered electrolyte dispensing, and servo-controlled crimping.
7.3 What balance precision is required for accurate coin cell specific capacity measurement?
Electrode disc mass should be measured using a balance with a resolution of 0.01 mg (100,000th-gram precision or better). Balances with lower resolution — such as 0.1 mg (10,000th-gram) — introduce weighing errors that are amplified in the specific capacity calculation, particularly for small-diameter electrodes with low active material loadings. Visual inspection of each disc for cracks, material loss, or agglomerates should be performed before weighing to exclude defective samples.
7.4 What COV (coefficient of variation) is acceptable for coin cell specific capacity testing?
For cathode materials such as NCM and LFP, a COV below 0.3% across parallel coin cells is generally considered acceptable for R&D material qualification. Graphite anode cells typically achieve COV below 0.2%, while silicon-based anodes — due to their inherently higher capacity values and volume expansion — may show COV up to 0.4% even under well-controlled conditions. Values exceeding these thresholds often indicate process inconsistencies in electrode fabrication or cell assembly rather than intrinsic material variability.
7.5 How does automated coin cell assembly improve specific capacity testing consistency?
Automated coin cell assembly systems eliminate the primary source of inter-cell variance in manual workflows: operator-dependent variability in component placement, electrolyte volume, and crimping force. By controlling concentricity, electrolyte dispensing volume (standardized at 70 µL in two portions in this study), and sealing pressure for each cell, automated systems achieve consistent assembly parameters across all cells in a batch. The IEST CAAS1200M system demonstrated COV values below 0.4% across NCM, LFP, graphite, and silicon-based anode materials, confirming that automated assembly is a viable replacement for manual methods in material R&D laboratories.
7.6 How do I test a full batch of coin cells for consistency?
Testing a full batch of coin cells for consistency requires controlling all seven process stages — slurry mixing, coating, calendering, moisture, punching/weighing, glovebox assembly, and charge/discharge testing — identically across every cell in the batch, then evaluating the resulting specific capacity data using sigma, range, and coefficient of variation (COV) across parallel groups. In IEST’s 7-group × 20-electrode evaluation, the CAAS1200M automated assembly system combined with standardized electrolyte dispensing and crimping produced batch COV values below 0.4% across four material systems, indicating that the remaining spread reflected material properties rather than assembly-induced variance.
