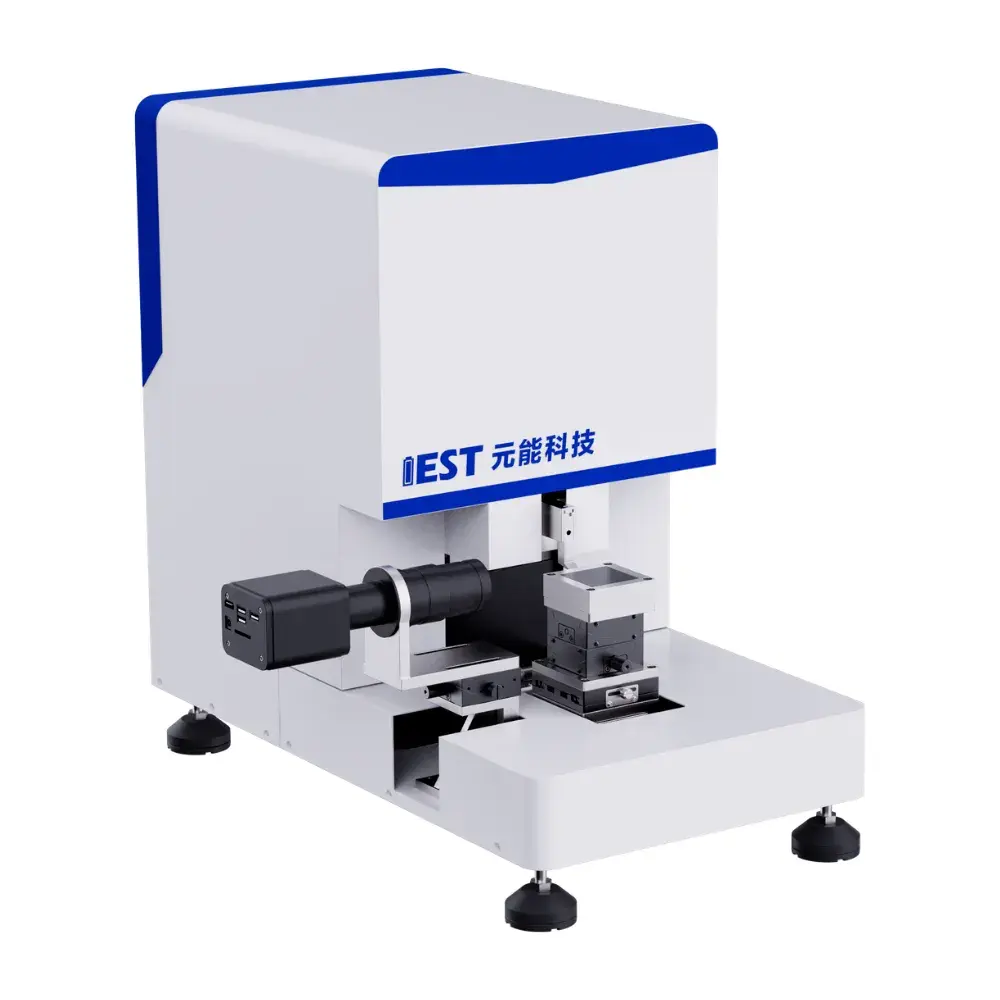

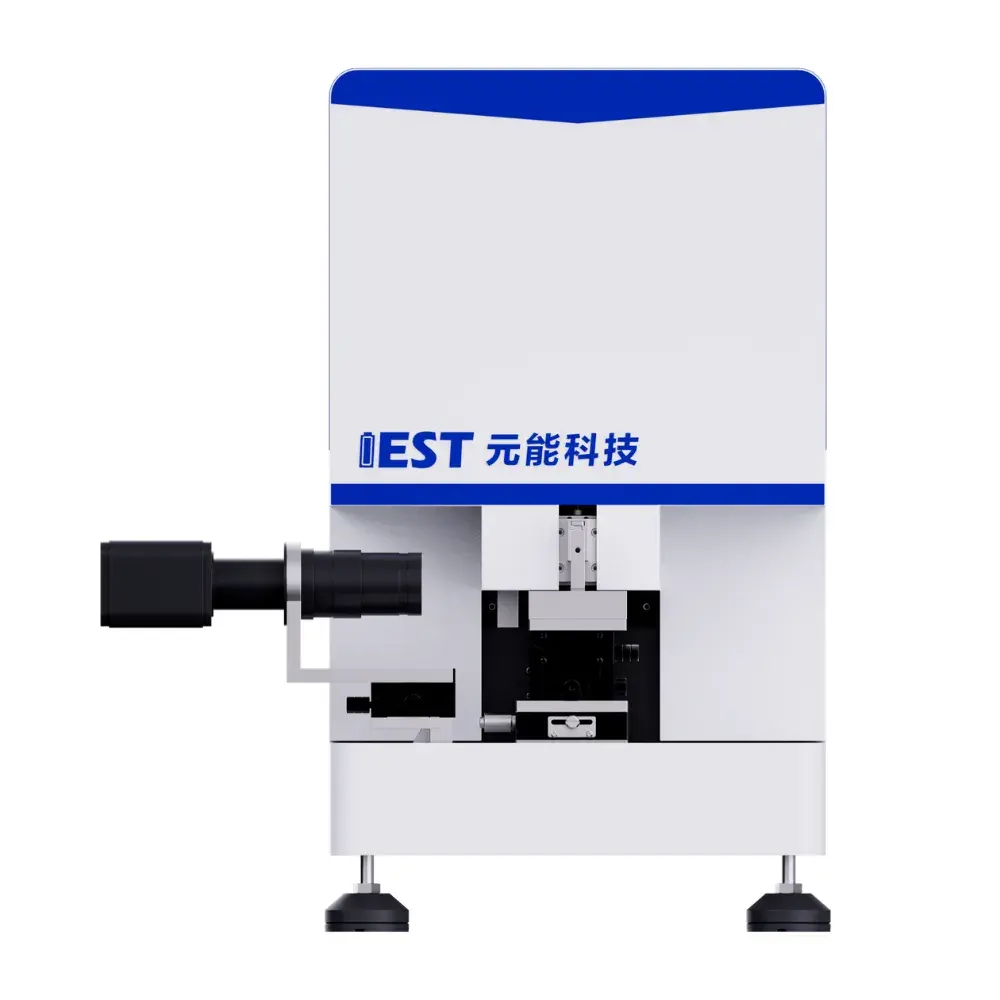

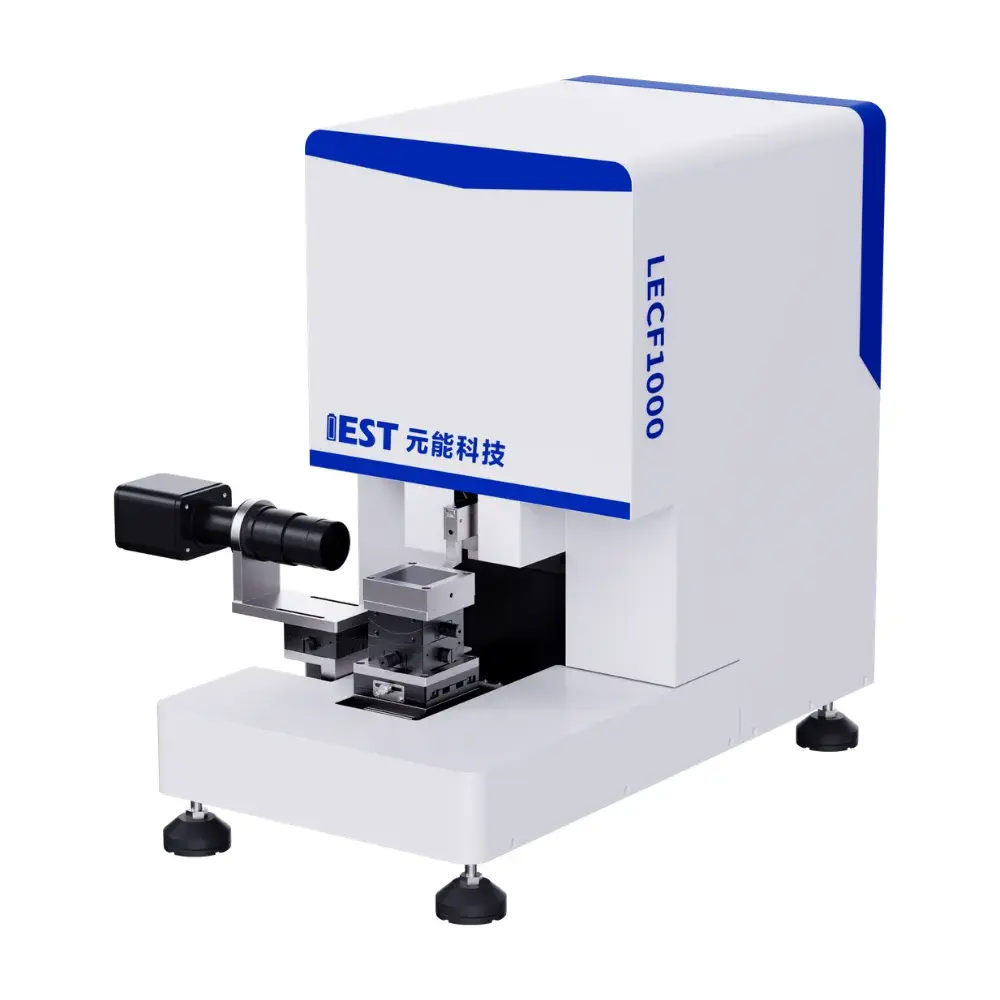

IEST Battery Electrode Coating Peel Strength Tester(LECF Series)

Introduction: The IEST Electrode Coating Peel Strength Tester( LECF Series) is an advanced analytical instrument designed to characterize the interfacial adhesion and depth-resolved mechanical integrity of lithium battery electrodes. Utilizing micron-level layered scraping technology, the LECF precisely peels electrode coatings at controlled depths to quantify peel force and cohesive strength profiles. It provides critical insights into binder distribution (such as SBR migration), coating uniformity, and structural degradation across diverse processes—including conventional wet coatings, dry-processed electrodes, and solid-state battery systems.

Features：

• Stage: Ceramic vacuum chuck, 50 × 50 mm

• Force Range: 20 N (Accuracy: 0.3% FS)

• Displacement Accuracy: 1 μm

• Test Materials: Cathode and Anode Electrodes / Dry Electrodes / Solid-State Electrolytes

Application:

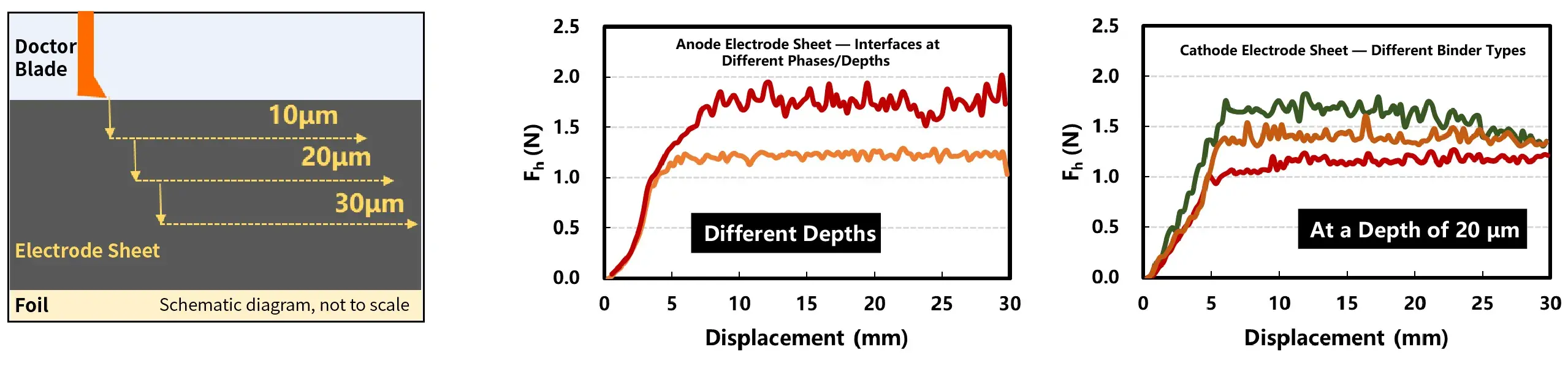

• Depth-Resolved Adhesion: Quantify peel force and cohesive strength across micron-level coating depths.

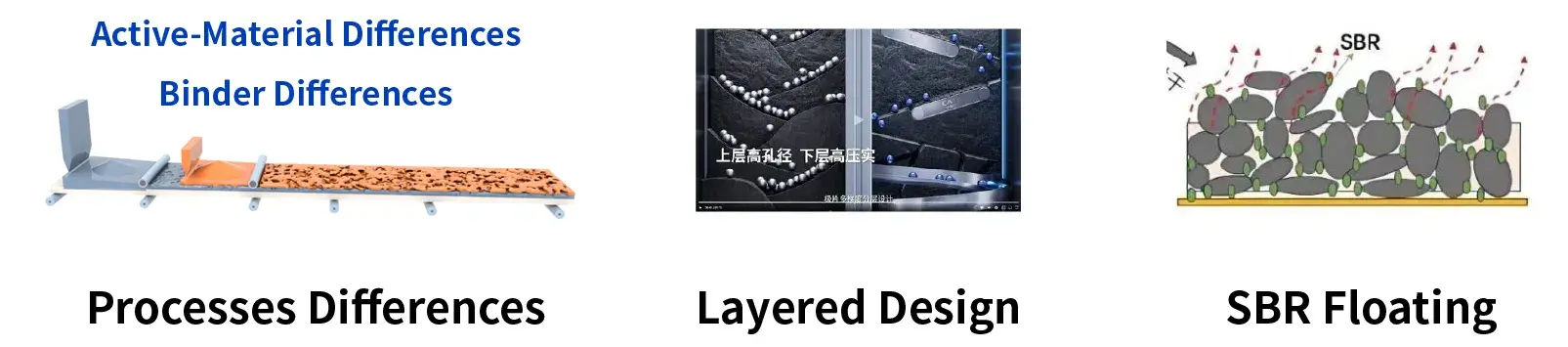

• Binder Migration Analysis: Detect binder floating (e.g., SBR) and evaluate vertical gradient uniformity.

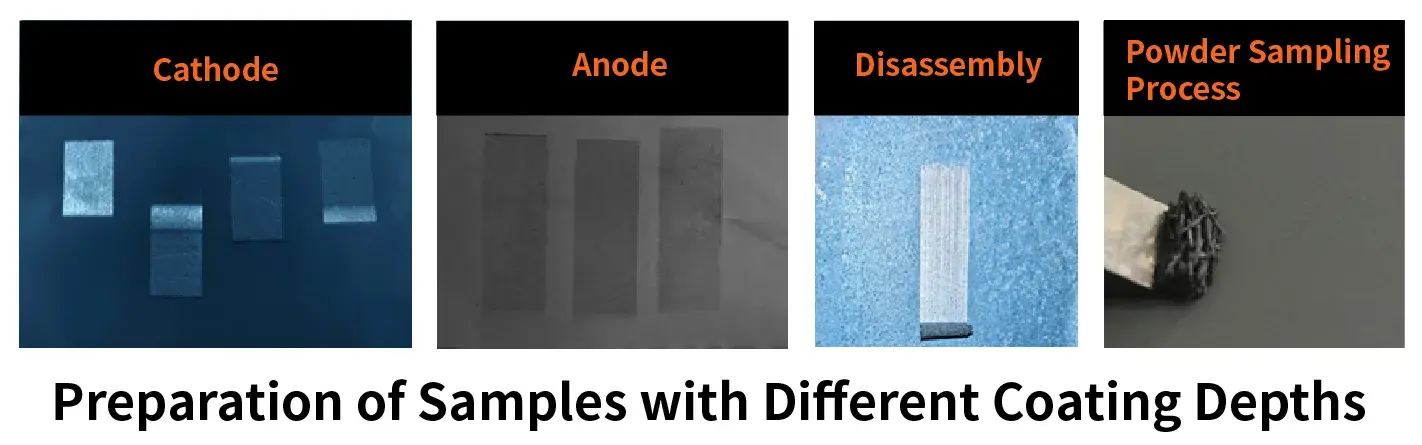

• Layered Sample Preparation: Prepare depth-specific coating and powder samples for downstream characterization.

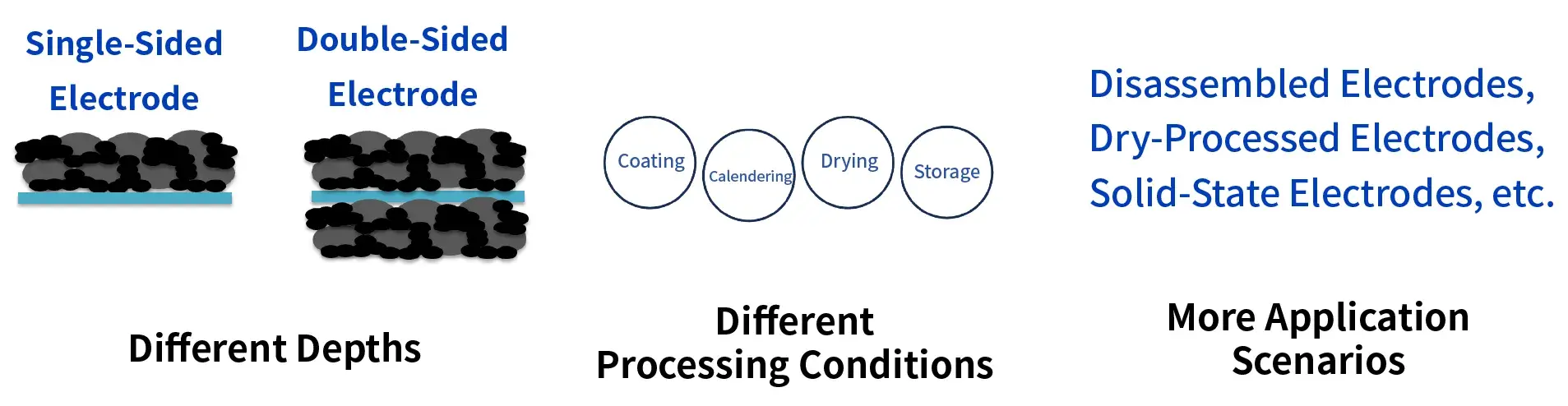

• Next-Gen Electrode R&D: Characterize wet, dry-processed, and solid-state battery electrodes.
